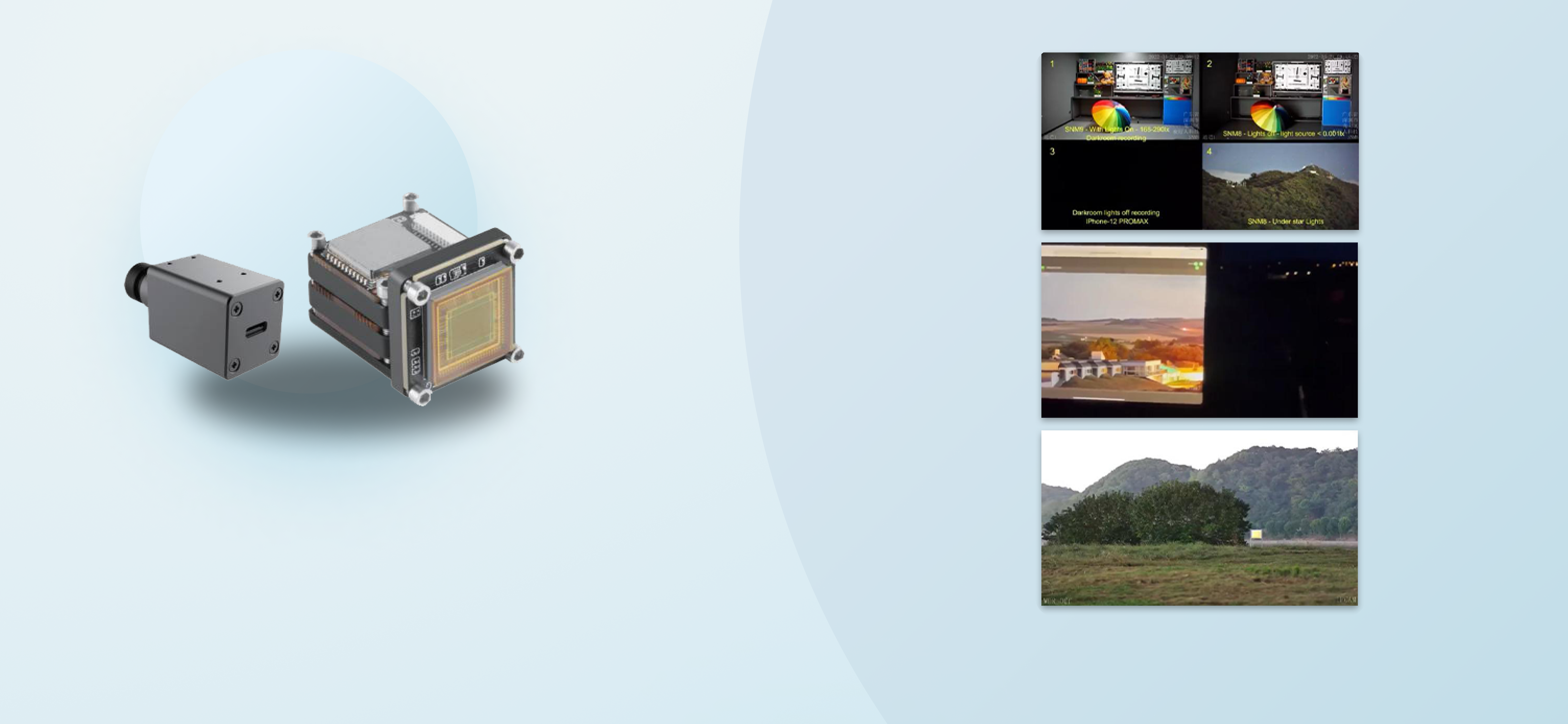

USB Night Vision Modules
USB Night Vision Modules

Introduction of UAV Multipurpose USB Series Camera

The USB Night Vision Modules are equipped with high-performance, nationally produced components and a lightweight, ergonomic design tailored for versatile applications. Featuring USB output capabilities, these modules ensure seamless connectivity and deliver continuous, high-definition images with exceptional clarity, whether in true color or pure black and white. Even under minimal lighting conditions, such as starry skies or moonlit environments, the system performs reliably. Designed to support real-time functions like aiming, observation, recording, and photography, these modules are ideal for applications requiring portability and precision in low-light environments. Whether for surveillance, research, or outdoor exploration, this cutting-edge technology meets the demanding needs of modern low-illumination scenarios.

Type 1 camera Specifications

Model Number Sensor Size Video Output Resolution Frame Rate (fps) Minimum Illumination HOR (dB) Comm.Interface Power Consumption Unit Size ( mm )
XHM5602U-20C (Type 1) 1/1.8 inch True Color 1280x1024 25/30 0.003Lux/F1.0 120 USB 2.0 ≤ 1.25 w 24x24x55.2
XHM5602U-20B (Type 1) 1/1.8 inch Black & White 1280x1024 25/30 0.001Lux/F1.2 120 USB 2.0 ≤ 1.37 w 24x24x55.2
XHM5658U-20C (Type 1) 1/2 inch Black & White 1280x1024 25/30 0.001Lux/F1.2 120 USB 2.0 ≤ 1.55 w 24x24x55.2
XHM5602B-3812 (Type 1) 1/1.8 inch True Color 1280x1024 50 0.003Lux/F1.0 120 USB 2.0 ≤ 1.55 w 24x24x55.2

Type 2 camera Specifications

Model Number Sensor Size Video Output Resolution Frame Rate (fps) Minimum Illumination HOR (dB) Comm.Interface Power Consumption Unit Size ( mm )
XHM5602U-20C (Type 2) 1/1.8 inch True Color 1280x1024 25/30 0.003Lux/F1.0 120 USB 2.0 ≤ 1.25 w 20x20x34.2
XHM5602U-20B (Type 2) 1/1.8 inch Black & White 1280x1024 25/30 0.001Lux/F1.2 120 USB 2.0 ≤ 1.37 w 20x20x34.2
XHM5658U-20C (Type 2) 1/2 inch Black & White 1280x1024 25/30 0.001Lux/F1.2 120 USB 2.0 ≤ 1.55 w 20x20x34.2
XHM5602B-3812 (Type 2) 1/1.8 inch True Color 1280x1024 50 0.003Lux/F1.0 120 USB 2.0 ≤ 1.55 w 20x20x34.2
